AGM glass tempering machine

Ask Lasest Price
Brand Name :	AGM
Certification :	ce
Supply Ability :	5 Unit/Units per Month
Price :	$90,000.00 - $100,000.00/Units
MOQ :	1 SET

Add to Cart

Product Details
Company Profile

AGM glass tempering machine

Suitable glass types:

Off-line coated glass, on-line coated glass;
Pattern glass, color glass;
Clear float glass

Requested glass quality:

No visible bubbles, impurities;
Meet the national standards of high quality float glass;
Glass shall be beveling, edging, washing and dry

Product Parameters

Voltage	380v/50hz
Processing Glass Size	1700*2500mm
Efficiency	Not less than 98%
Power consumption	Less than 3.8 kw/h/m2—5mm
Working Temperature	Heating balance system
Net Weight	2200kg
Air pressure of the compressor	＞0.6MPa（supplied by the buyer）

Product Introduction

1. With light tubes to check the glass quality;
2. Security socket for glass repair tools, more convenient;
3. Store content box to put tools and other small stuffs for production;
4. Driving motor with inverters, to transmit glass enter the furnace in high speed;
With lifting table for large size glass loading;

1. Top heating section could go up and down by the lifting system which installed on top of the furnace, lifting height could be
500mm, which is convenient for cleaning the furnace;
2. Insulation is high density ceramic fiber board, the surface will be coated by high temperature resistant glue, in the last,
all insulation will be covered by magnetized high aluminum plates, which could prevent any fallings to the glass;
High quality insulation material, from 25℃ to 700℃，takes about 3-4 hours, temperature falling down per hour about 15℃

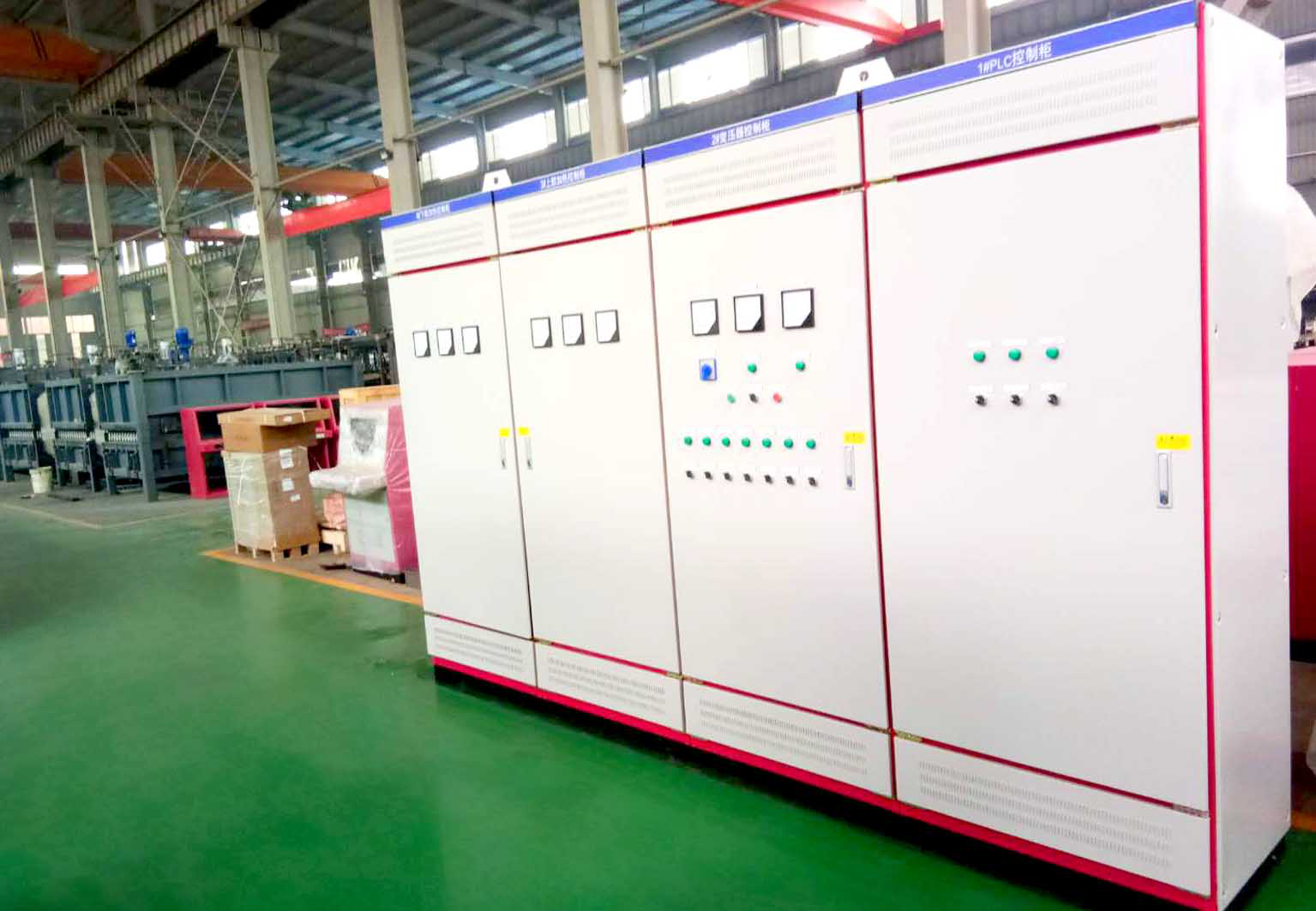

Wiring configurations:
1. All wires and electrical components and cables are with CE standard;
Power cables(including the cables between inverter and blower) shall be provided by the buyer

PLC: Omron, Japan
1. Stable and reliable program, friendly human-computer interface;
Abnormal alarm functions(like encoder problems, parameters setting problems etc) and records of alarms, which could be as a
reference for maintenance for after-sales technicians

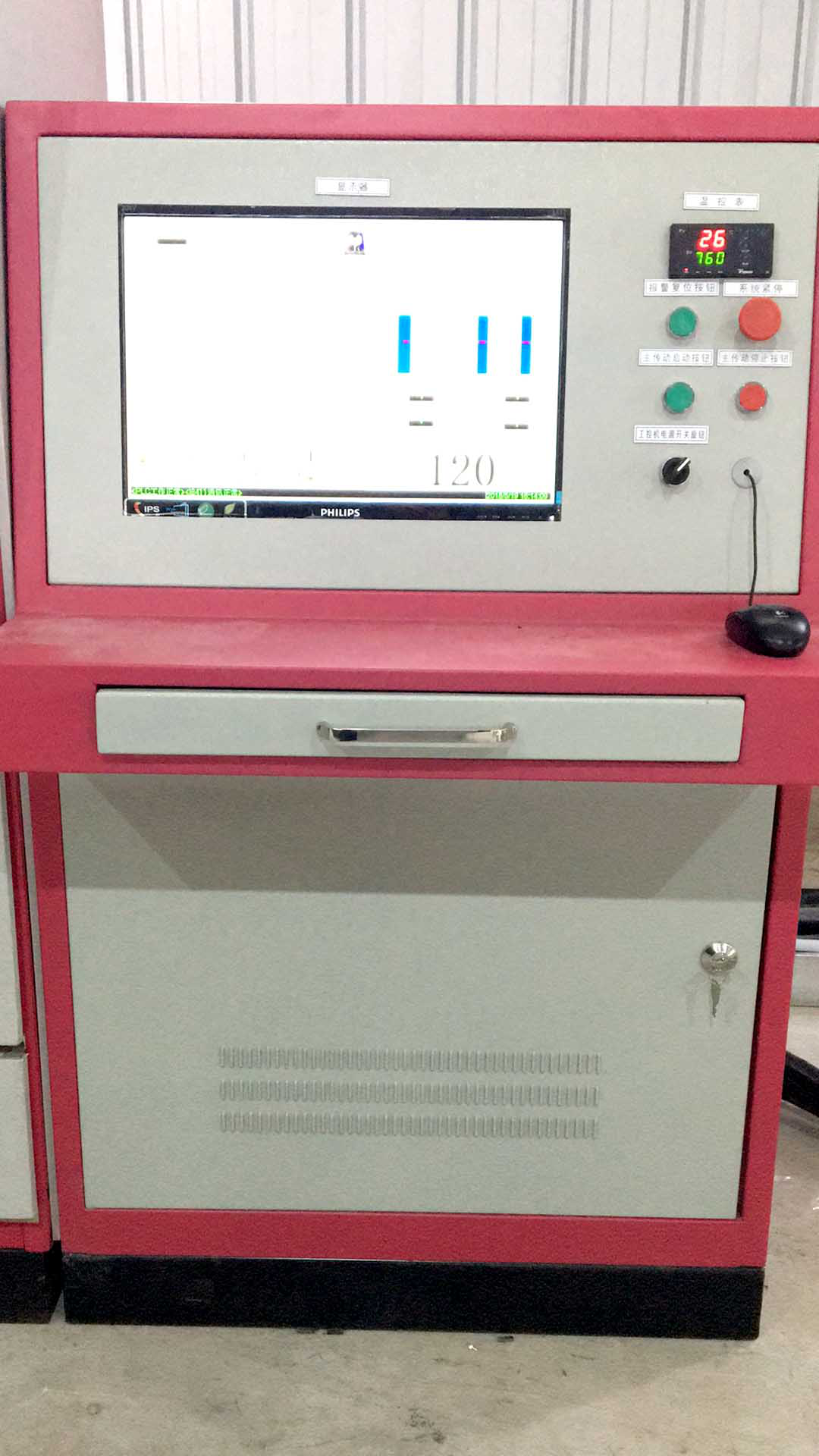

Operation cabinet:
1. Separatelyoperation cabinet for industrial computer, which is better for interference rejection;
2. Industrial computerbeing used;
3. By different operations or failures, pop-up windows come up and show the errors to remind the operator;
4. To avoid wrong operations, there is strict authorization limit for these parameters which may effect the normal production;
different authorization limit for different operators(technicians or operators);
5. Complete monitoring function for almost all the sensors and components;
6. Automatic parameters saving and upgrade;
Automatic monitoring on thermocouples, once any of them breaks down, there will be error warning showing up and reminding which
one is broken down;

Glass washing machine.

This machine is consists of three parts: feeding section, washing section and unloading.

Insulating glass production line

It was made by Automatic unloading machine, automatic insualting glass sealant sealing line,automatic insulating glass production line , automatic loading machine, automatic coating deletion machine.

Packing and shipping

glass laminating machine was packed in Film then carton or pallet.

FAQ

Q1: The MOQ for glass laminating machine?
A: 1 set.

Q2: How do I get fast response?
A: Send the E-mail to us or call us directly.
Q3: What about the lead time?
A: Sample usually needs 5-7 days, mass production time needs 15-30 days
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional for big quantity.
Q5. How to proceed an order for your products?
a: Firstly let us know your requirements or needs.
b: Secondly We quote according to your requirements or our suggestions.
c: Thirdly customer confirms the samples and places deposit for formal order. Also you can get the testing if necessary.
d: Fourthly We arrange the production and ship to you.
