202 modern horizontal glass washing machine for insulating glass washing machines prices

Product Description

Glass Washing Machine.
This machine is consists of three parts: feeding section, washing section and unloading
Briefly
1.All the washing parts adopts stainless steel and rust-proof materials
2. 4 pcs of brushes, 4 pcs of spong rollers, to ensure the glass is clean and dryness after washing
3.The machine is easy to operate, all the operation can be finished on the operating table.
Water System
Made of 3 water boxes and 4 circulating water system, and the quality of water influence
the cleanliness of glass surface.
Air Road System
The distance between the air knives and plane can be adjusted, when the glass thickness changed, you need to adjust the distance.
Maintenance
It is a very important matter to do routine maintenance for the machines, you should always observe the moving parts of the machine, water system, air system, electrical system, in case of emergency immediately stop checking: bearing and lubrication for all lubrication points lubrication in time.
(1)bearing and lubrication:Lubrication to all lubrication place.
(2)Maintenance of the water system:
Water in the washing section is circular, the water need changing every day, to keep it clean.
You should wash water box and filtration device every month. Observation hole on the cover of washing section is used to check the situation of water spraying.
(3)Maintenance shunt system
Regularly check the operation of the blower, stop immediately in case of an unusual sound, informing maintenance department to check machines.
Cleaning Air inlet filter grid ever month, keeping the blower room clean to prevent dust being sucked air passage, pollution glass.
The distance between the air knives and plane can be adjusted, when the glass thickness changed, you need to adjust the distance.

Min glass size	200mm*200mm
Washing glass thickness	3~12mm
Washing glass speed	2~7m/min
Power supply	380V 50HZ
Insulating glass thickness	2-8mm
Overall dimension	38001600900

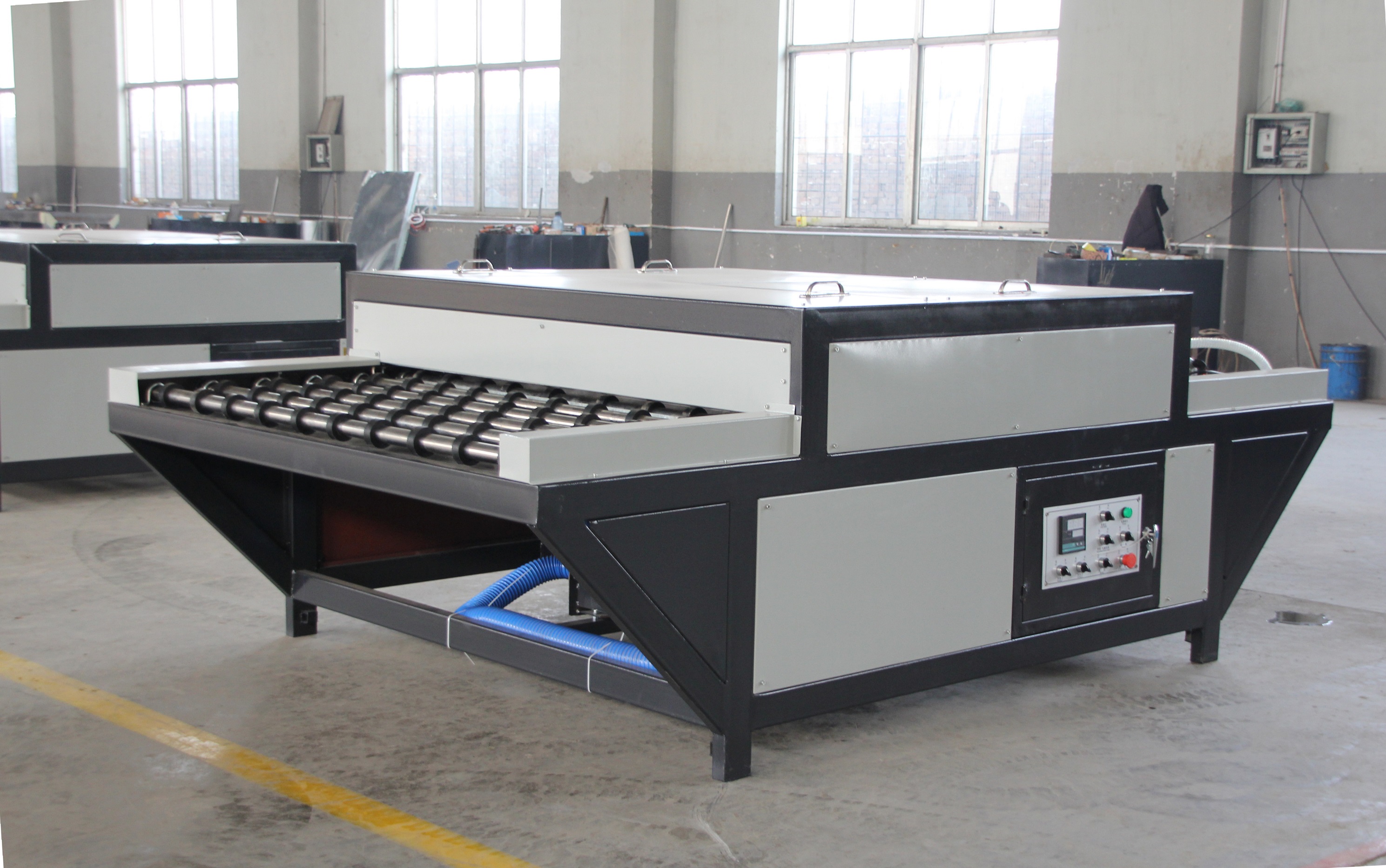

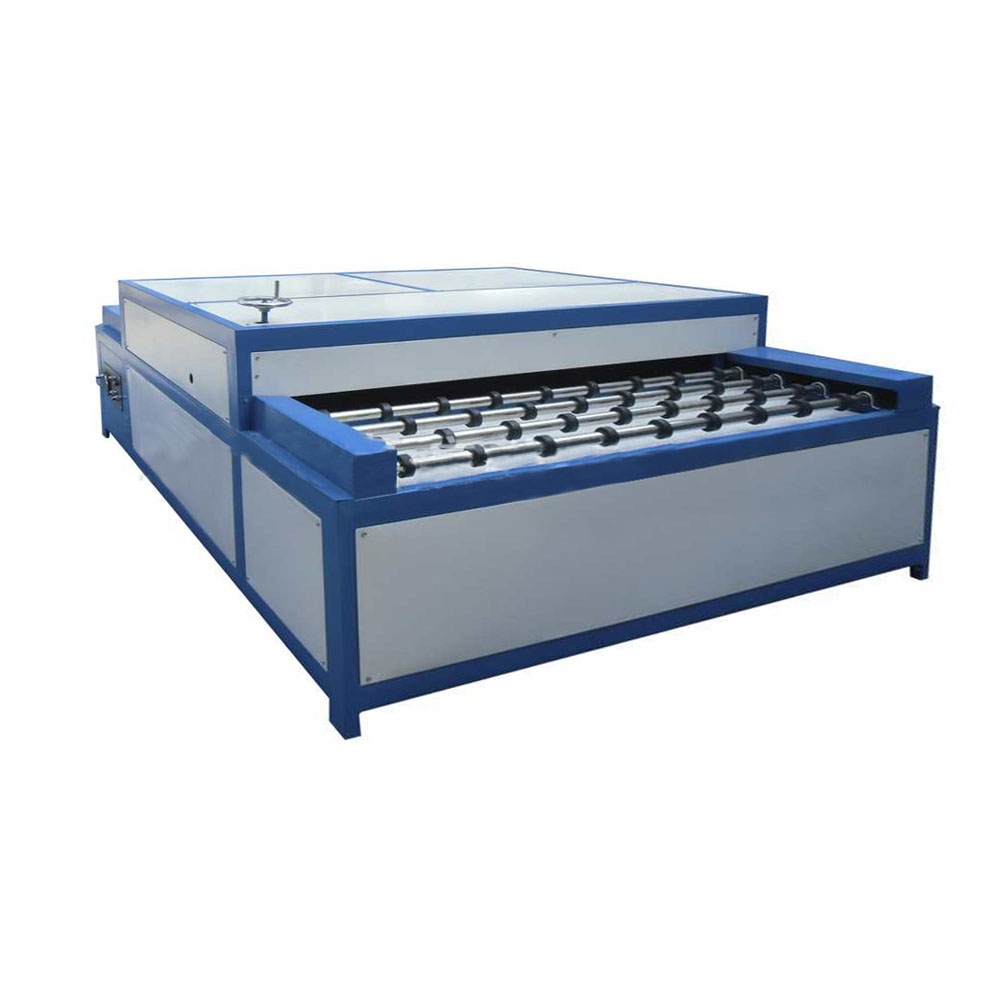

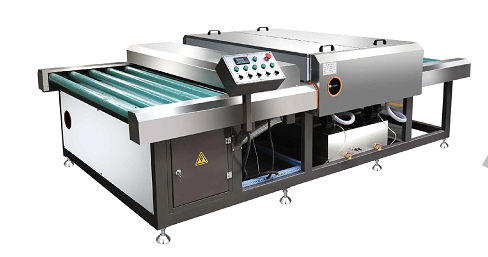

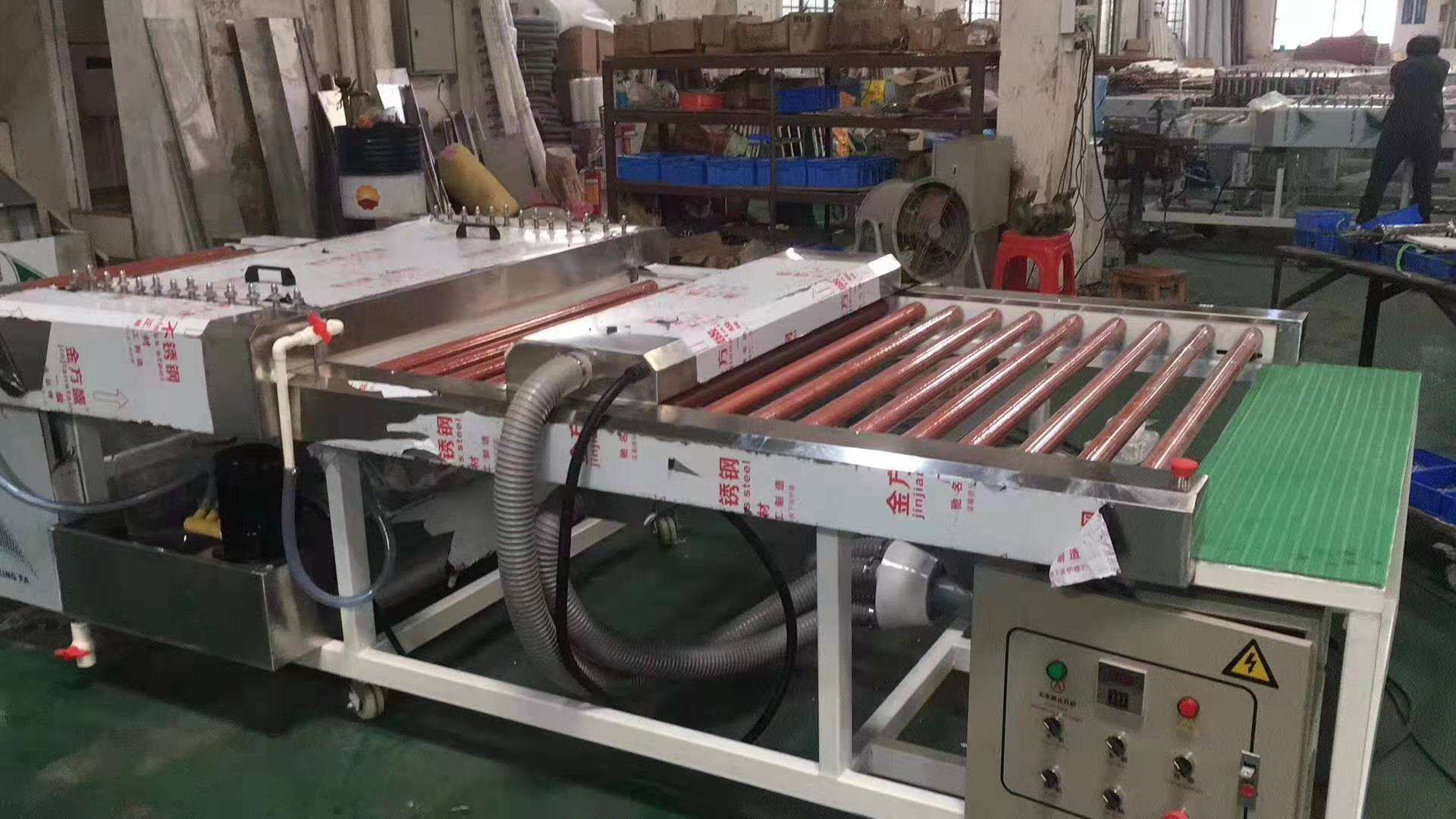

Product show

202 modern horizontal glass washing machine for insulating glass washing machines prices

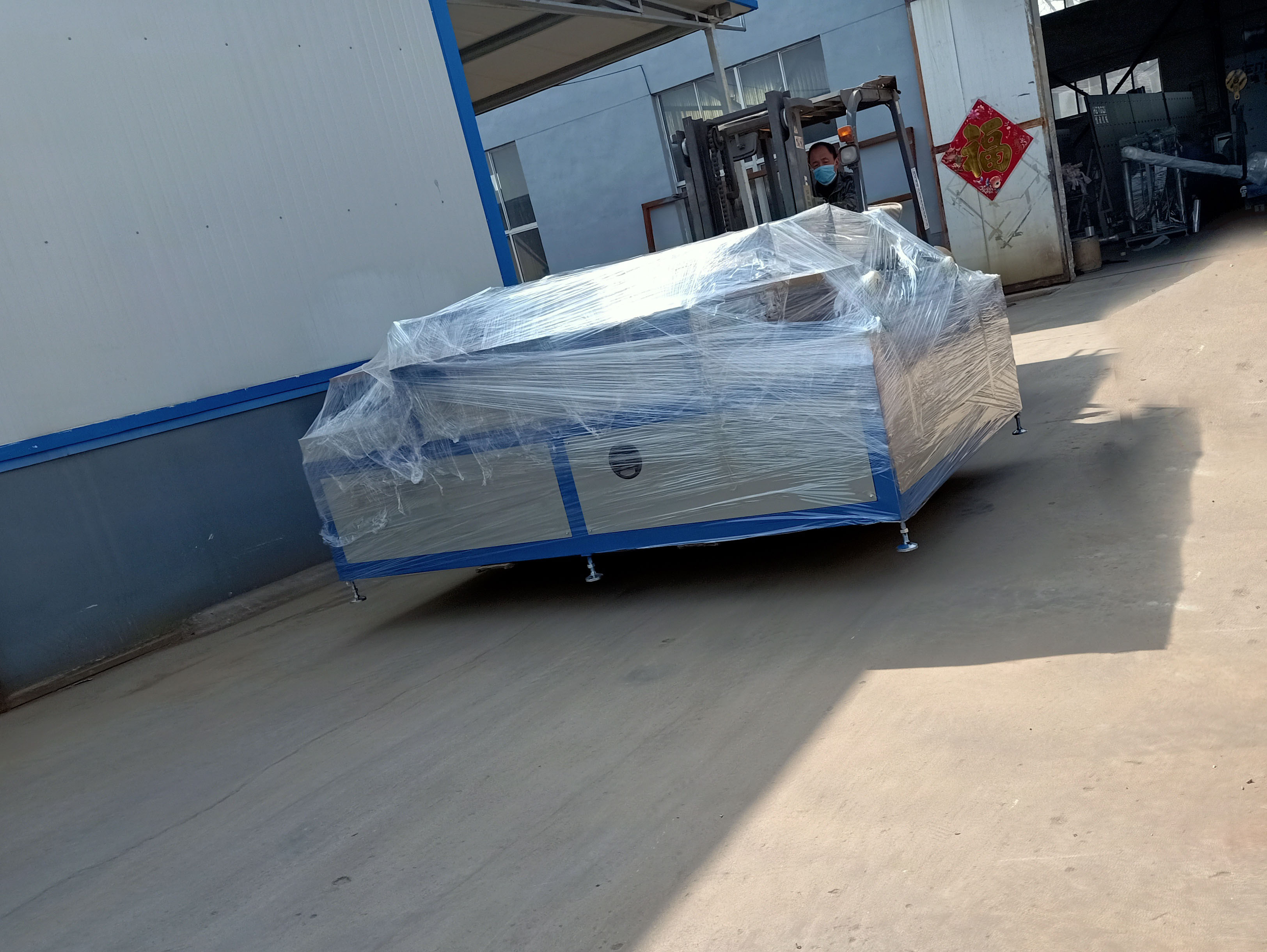

Packing & Delivery
