Vertical glass washing machine

Ask Lasest Price
Brand Name :	Alger, Alger
Certification :	ce
Supply Ability :	20 Set/Sets per Month
Price :	$2,500.00/Sets >=1 Sets

Add to Cart

Product Details
Company Profile

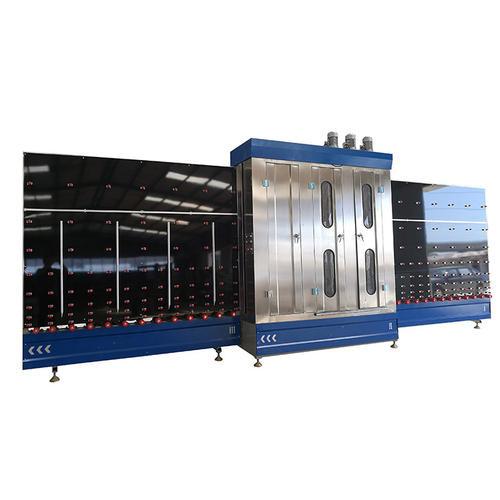

Vertical glass washing machine

Product Description

Vertical glass washing machine is key equipment of manufacturing and processing insulating glass in architecture,building material and decoration.The machine can wash 3-19mm thickness flat glass.

Voltage	380V/50HZ
Max Size of Glass Processing	2000*2500mm
Min Size of Glass Processing	420*420mm
Washing thickness	3-19mm
Cleaning Speed	2-7m/min
Water: Electric Conductivity of Water	≤50us/cm

Breifly

1.All the washing parts adopts stainless steel and rust-proof materials

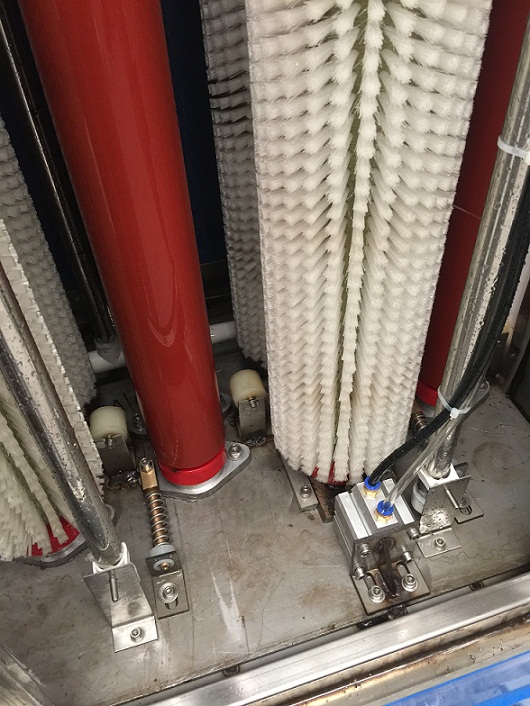

2. 4 pcs of brushes, 4 pcs of spong rollers, to ensure the glass is cleaness and dryness after washing
3.The machine is easy to operate, all the operation can be finished on the operating table.

Water System

Made of 3water boxes and 4circulating water system, and the quality of water influence
the cleanliness of glass surface.
Air Road System
The distance between the air knives and plane can be adjusted, when the glass thickness changed, you need to adjust the distance.

Maintance

It is a very important matter to do routine maintenance for the machines, you should always observe the moving parts of themachine, water system, air system, electrical system, in case of emergency immediately stop checking: bearing and lubrication for all lubrication points lubrication in time.
(1)bearing and lubrication:Lubricationing to all lubrication place.
(2)Maintenance of the water system:
Water in the washing section is circular, the water need changing every day, to keep it cleaness.
You should wash water box and filtration device every month. Observation hole on the cover of washing section is used to check thesuituation of water spraying.
(3)Maintenance shunt system
Regularly check the operation of the blower, stop immediately in case of an unusual sound, informing maintance department to check machines.
Cleaning Air inlet filter grid ever month, keeping the blower room clean to prevent dust being sucked air passage, pollution
glass.
The distance between the air knives and plane can be adjusted, when the glass thickness changed, you need to adjust the distance.

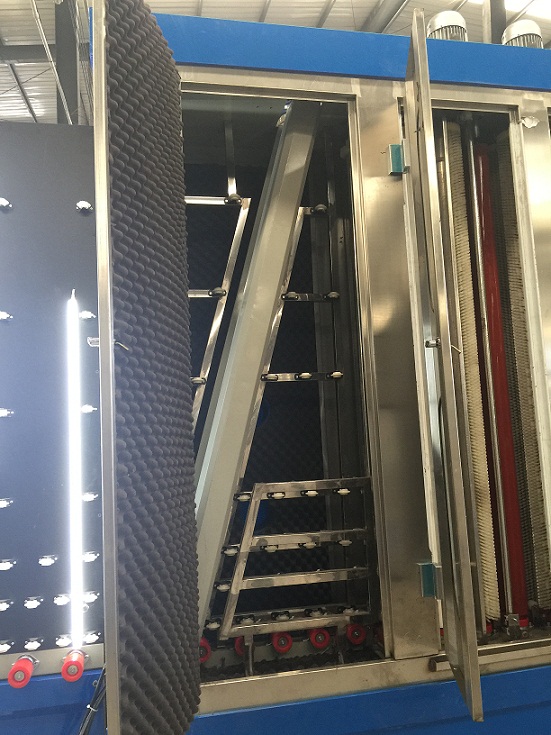

Product show

Packing & Delivery

Why choose us?

Our Services & Strength

1.Carton minumum order 2.Delivery on time 3.Free samples 4.24*7Hours online service 5.Flexiable&Secured payment 6.0 Worry about quality 7.Our team are young but professional

Company Introduction

Liaoning Alger Building Materials And Machine Co.,LTD locates in Bayuquan, Yingkou,Liaoning province, a beautiful coastal city. Alger was established in 2008.

Alger is committed to produce and provide environmental energy-saving building materials and advanced intelligent efficiency machineries with better technical support and service. We own several subsidiaries to manufacture materials.

Our main products scope :

I.Insulating Glass Sealing Materials

II.Adhesive Composition

III.Glass Deep Processing Equipments

IV.Fittings

VI.Hardware for Door and Window

Our team is young in average age but with mordern spirit of high technology.The products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
